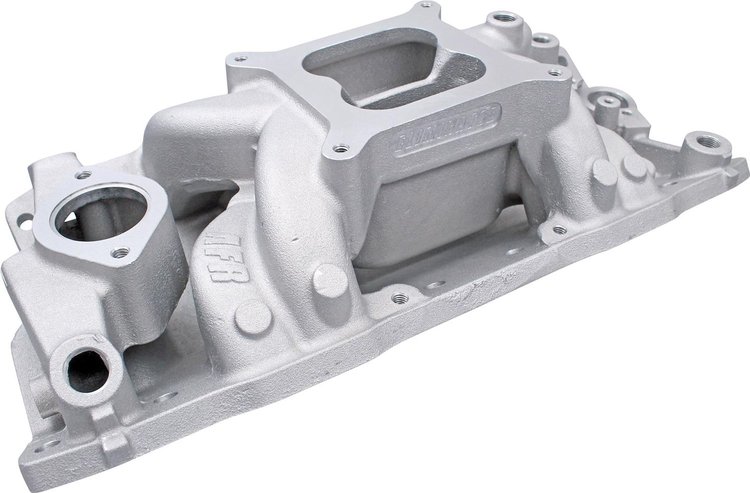

Vehicle Info Needed4812 Eliminator Dual-Plane Intake Manifold Small Block Chevy
Ships Today
Lowest Price GuaranteeAFR 4812 Features:
- Ideal for 302 to 406 ci engines with an RPM range up to 6,500 RPM
- Cast-in nitrous bosses
- Dual distributor clamp hold downs
- Carburetor pad height is 4.725” ( front 4.200”, back 5.250”)
- Front and rear water outlets for additional cooling benefits
AFR 4812 Specifications:
- Fits square bore carburetors only
- Will not fit TBI/TPI 72-degree intake bolt
- Will not fit under a stock Corvette hood
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Eliminate the Competition
Air Flow Research's Eliminator Series Intake Manifolds are ideal for use in high-performance street/strip and race applications. These intake manifolds are specifically designed for small block Chevy applications using standard intake port cylinder heads with a 23-degree manifold configuration. Eliminator Series Intake Manifolds feature untapped auxiliary bungs cast into the top of the intake runners for EFI injectors or nitrous nozzles use. Additional coolant outlets have been added at the rear of the manifold for custom cooling systems.
