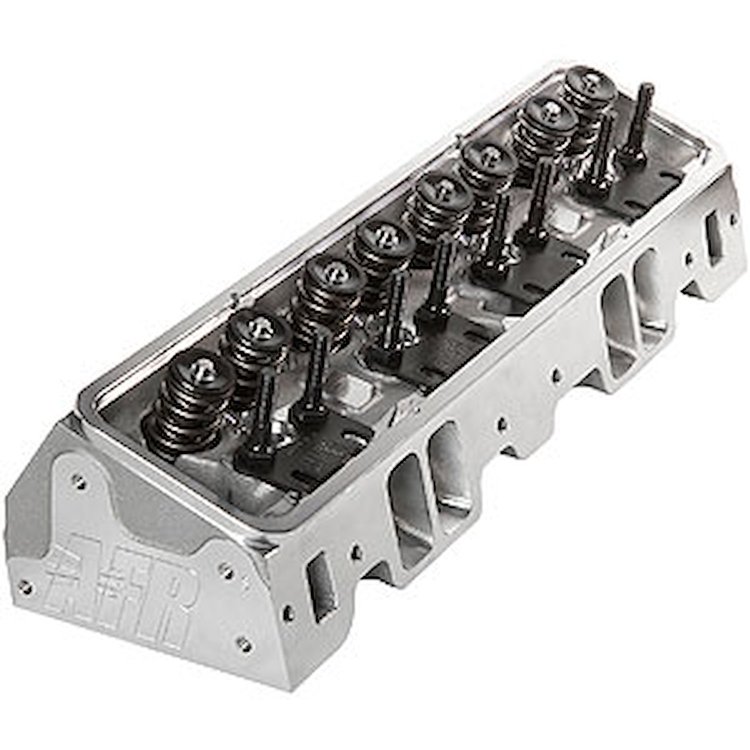

Vehicle Info Needed1066 220cc Eliminator Race Aluminum Cylinder Heads Small Block Chevy
Ships Today
Lowest Price Guarantee- 220cc Eliminator Race Aluminum Cylinder Heads
- Small Block Chevy
- Race Ready CNC Porting
- 75cc Combustion Chambers
- Standard Exhaust Port Configuration
- Angle Spark Plug
- Assembled
- Pair
Small Block Chevy 220cc Eliminator Race Basic Package Components 100% CNC Ported Combustion Chambers 100% CNC Ported Exhaust Ports 100% CNC Ported Intake Ports Competition 5-Angle Valve Job Intake Valve, 2.100' x 5.006' o.a.l. Exhaust Valve, 1.600' x 5.024' o.a.l. 1.550' OD Solid Roller Dual Valve Spring, 225 lbs. on seat, .710' maximum lift, max RPM 7200-7400 10º Manley 4140 Chrome Moly Retainers 10º Valve Locks 7/16' Rocker Studs Adjustable 5/16' Guide Plates Viton Valve Seals Hardened Spring Cups Intake Valve Seats Exhaust Valve Seats Bronze Valve Guides Small Block Chevy 220cc Eliminator Race Head Specifications Head Torque w/Moly Lube 65-70 Ft. Lbs. Rocker Stud Torque 55 Ft. Lbs. Intake Port Gasket, 1.310' x 2.180' w/ 3/8' radius Fel-Pro 375-1206 - DO NOT PORT MATCH Intake Manifold to Fel-Pro Gasket. Exhaust Port Gasket Fel Pro 375-1405 Head Gasket 350ci Fel Pro 375-1003
400ci Fel Pro 375-1014Head Bolts & Studs Standard ARP Head Bolt Washers Manley Standard Stud Girdle Standard Suggested Manifold AFR p/n 033-4801, AFR p/n 033-4802 or Edelbrock Vic Jr p/n 350-2975 or Super Victor p/n 350-2925 Spark Plug Starting Range Autolite 3910 Combustion Chambers 75cc Intake Port 220cc Exhaust Port 80cc Spring Pocket can be cut to 1.750, no deeper. Valve Spacing Standard GM Rocker Arms Standard Valve Angle 23° Angle Mill .008' per cc Flat Mill .006' per cc NOTE: Flat and Angle mills might require a .120' thick head gasket.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
AFR's Ultimate SBC Head
with Standard Valve and Stud Locations!
AFR is reviving their popular 220cc powerhouse due to overwhelming request from customers for a larger bolt on standard valve location head. Unlike the previous 220, the new Eliminator version requires no special parts. Valves and studs are in stock GM L98 locations just like the 180cc, 195cc, and 210cc series cylinder heads. These cylinder heads do not require offset rockers of any kind, yet they are still able to easily flow numbers that are in raised runner head territory. The Competition Package Race Ready CNC Porting Eliminator Head flows 329 CFM which is enough airflow to reach that elusive 700 HP mark in aggressive drag race trim while allowing you to retain all of your standard valvetrain components.
Show More
Displacement ranging from a high RPM 350-427ci with naturally aspirated applications in the various sportsman classes, bracket/drag cars, oval track, and larger displacement street machines with typical operating ranges between 4000 to 8000 RPM depending on application. Getting this much flow from a stock geometry 23° head is an extremely impressive accomplishment. As always they come with AFR's trademark 3/4'' thick head deck (ideal for nitrous or blower applications). Standard valves are lightweight 8mm diameter stem, 2.100'' intake and 1.600'' exhaust with AFR's hardened ductile iron interlocking seats. Dual valve cover bolt pattern is standard. Exhaust port and bolt pattern are raised .250'' (1/4'') over GM L98, this rarely affects header or chassis fitment. These 220cc aluminum cyilnder heads are available in either standard port or spread port exhaust configurations. Spread port heads have the center exhaust ports spread apart 5/8'' over stock L98 GM heads. The reason for spread port heads is to achieve additional cooling in the center of the head where the heat concentration is greatest. As standard headers do not fit, spread port headers are required since the center ports are spread further apart then stock GM products. The increased spacing on the exhaust port also requires the use of exhaust gasket Fel-Pro p/n 375-1409. Spread port heads only come with a Stahl bolt pattern. AFR's spread port head has all the benefits and features of AFR's standard head.220cc Eliminator Race Cylinder Head Features:
- 100% CNC Ported Combustion Chambers
- 100% CNC Ported Exhaust Ports
- 100% CNC Ported Intake Ports
- Competition 5-angle Valve Job
- 220cc Intake Ports
- 80cc Exhaust Ports
- Bead Lock Intake Valve, 2.100'' x 5.006'' Overall Valve Length
- Bead Lock Exhaust Valve, 1.600'' x 5.024'' Overall Valve Length
- PAC Racing Valve Spring: 1.550'' OD Solid Roller Dual Valve Spring, 225 lbs on seat, .710'' maximum lift, Max RPM 7200-7400
- 10° Manley 4140 Chrome Moly Retainers
- 10° Bead Lock Valve Keepers
- 7/16'' Rocker Studs
- Adjustable 5/16'' Guide Plates
- Viton Valve Seals
- Hardened Spring Cup
- Intake Valve Seats
- Exhaust Valve Seats
- Bronze Valve Guides
- Standard or Spread Port Exhaust Bolt Pattern
The AFR 220cc Eliminator Race heads are built for serious performance — engineered to deliver maximum airflow, hardware reliability, and racing durability all in one package. Designed for high-RPM competition use, these heads offer race-level efficiency and power potential while retaining practical features for advanced builds.
These heads boast 100% CNC-ported intake, exhaust, and combustion surfaces in high-quality A356 aluminum castings — optimizing flow consistency from cylinder to cylinder. With intake runner capacity at 220 cc and matched combustion chambers (65 cc or 75 cc options), they unlock airflow figures upward of 329 CFM — airflow capable of supporting builds pushing into the 700 HP range.
Valve train readiness is baked in. The heads come fully assembled with premium hardware including PAC solid dual springs (capable of .710″ lift), adjustable guide plates, hardened seats, ARP rocker studs, and bead-lock retainers — eliminating the hassle of sourcing suitable parts. Intake valves are 2.100″ (8 mm) and exhaust are 1.600″, engineered for strength, clearance, and durability under high-lift cams.
Further enhancing performance potential: the deck thickness is a stout ¾″, making it well-suited for forced induction, nitrous, or boosted applications. Because AFR locates the valves in standard positions, these heads work with conventional rocker arms and common valvetrain geometry — no exotic offsets needed.
If you're building a high-strung race motor, bracket car, or pro-street beast, these afr 220 sbc heads deliver the airflow, strength, and compatibility your high-performance engine requires. Don’t limit your build — upgrade to sbc afr 220 heads and give your bottom end the elite airflow platform it deserves.
