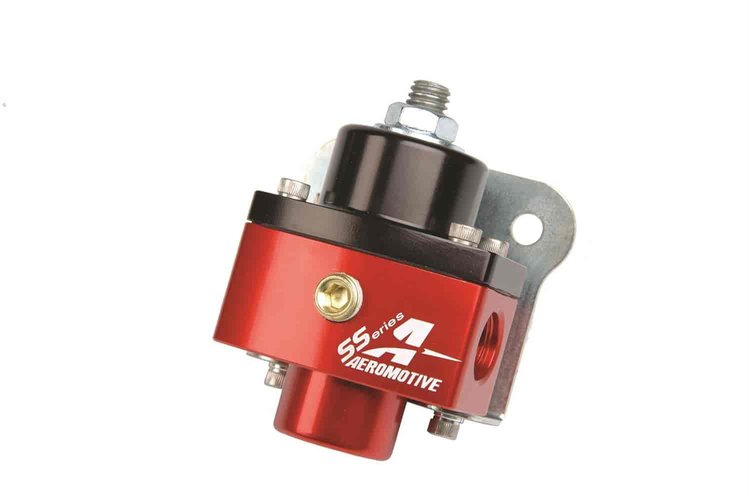

2-Port Adjustable Fuel Pressure Regulator -6AN O-Ring Female Inlet/Outlet Ports
InfoVehicle Info Needed
AEROMOTIVEPART NUMBER: 027-13201

2-Port Adjustable Fuel Pressure Regulator -6AN O-Ring Female Inlet/Outlet Ports

$15044
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

Regulators
    2-Port Adjustable Fuel Pressure Regulator
  • -6AN O-Ring Female Inlet/Outlet Ports
  • 1/8" NPT Gauge Port

  • SS adjustable carbureted regulator
  • adjustable from 5-12 PSI
  • eliminates pressure creep

    • Specifically designed for carbureted street or racing engines on gasoline, the SS-Series adjustable regulator offers higher flow, quicker response and less pressure creep than competing two-port designs. Popular in circle track applications up to and including NASCAR level horsepower and as a dedicated nitrous regulator. Adjustable from 5-10 PSI. P/N 13201 provides ORB-06 inlet and outlet ports. 1/8' NPT gauge port. Regulator re-seats when the needle and seat closes, preventing pressure creep. Includes mounting bracket. Not rated for alcohol fuels, ethanol or methanol.

    CNC-machined and adjustable from 5-12 psi, Aeromotive 2-Port Fuel Pressure Regulators are an excellent upgrade from the competition. Ideal for carbureted and dedicated nitrous applications where higher flow and quicker response is desired. Re-seats after needle shuts down to prevent pressure creep. Mounting bracket included. Gasoline Compatible Only.

    Platinum Series
    Aeromotive's fully-polished line of fuel system components ideal for street rods and show cars.

    Don't hassle with trying to piece together your regulator and components--we've done it for you with Fuel Pressure Regulator Kits. Click More Info below with the kit part numbers for details.

Part TypeFuel Pressure Regulator
Product LineAeromotive 2-Port Adjustable Fuel Pressure Regulators & Regulator to Carburetor Kits
BrandAEROMOTIVE
Package Height3.0
Package Width5.8
Package Length5.9
Weight0.82 PG
Part CategoryPerformance Parts
Regulator FinishRed anodized
Port Quantity3
Outlet Size-6 AN O-ring
Inlet Size-6 AN O-ring
Regulator MaterialAluminum
Pressure Range5-12
Outlet Port Diameter3/8
Outlet QuantityTwo
QuantitySold individually
Boost/Vacuum Reference PortNo
RebuildableYes
Inlet AttachmentFemale Threads
Mounting Bracket IncludedYes
Gauge PortYes
Outlet AttachmentFemale Threads
Regulator LocationInline
Inlet Port Diameter3/8
Fittings IncludedNo
Inlet QuantityOne
Pressure Range (Psi)5-12
Part FitmentUniversal
Regulator StyleNon-Return
Vendor Part Number13201
Package Qty1
Package TypeEA
