Made in USA
A1000 EFI Bypass Regulator (2) -10AN O-Ring Inlet Ports and (1) -6AN O-Ring Return Port
InfoVehicle Info Needed
AEROMOTIVEPART NUMBER: 027-13101

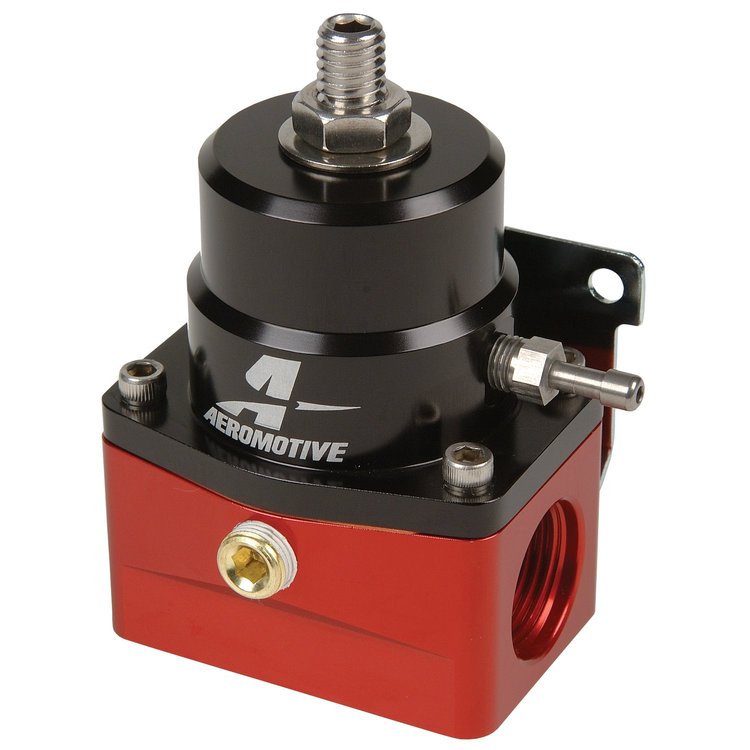

A1000 EFI Bypass Regulator (2) -10AN O-Ring Inlet Ports and (1) -6AN O-Ring Return Port

$21891
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

A1000 Regulators
    A1000 EFI Bypass Regulator
  • (2) -10AN O-Ring Inlet Ports and (1) -6AN O-Ring Return Port

    A1000 EFI Dual Fuel Rail

  • A1000 EFI bypass regulator
  • adjustable from 40-75 PSI
  • Performance EFI regulator designed for medium to high horsepower applications. This regulator features Aeromotives high-flow design, superb pressure control, and legendary durability. On the street and at the track, this pressure regulator has logged more miles, laps and passes than any other performance EFI regulator in the world! Base pressure adjustable from 40-75 PSI. Gasoline, ethanol and alcohol compatible. Fuel pressure rises on a 1:1 ratio with boost. 1/8' NPT gauge port. P/N 13101 provides (2) ORB-10 inlet ports and (1) ORB-06 return port.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeFuel Pressure Regulator
BrandAEROMOTIVE
Package Height2.2
Package Width4.7
Package Length6.6
Weight1.04 PG
Part CategoryPerformance Parts
Inlet Size-10 AN O-ring
Boost/Vacuum Rise Ratio1:01
Pressure Range40-75
Outlet Port Diameter3/8
Outlet QuantityOne
Mounting Bracket IncludedYes
Gauge PortYes
Return Fitting Size-6 AN O-ring
Inlet Port Diameter5/8
Fittings IncludedNo
Inlet QuantityTwo
Regulator StyleReturn
Return AttachmentFemale Threads
Regulator FinishRed anodized
Port Quantity3
Outlet Size-10 AN O-ring
Regulator MaterialAluminum
QuantitySold individually
Boost/Vacuum Reference PortYes
RebuildableYes
Inlet AttachmentFemale Threads
Outlet AttachmentFemale Threads
Regulator LocationInline
Pressure Range (Psi)40-75
Vendor Part Number13101
Package Qty1
Package TypeEA
