Vehicle Info NeededAEM ELECTRONICSPART NUMBER: 017-30-2853

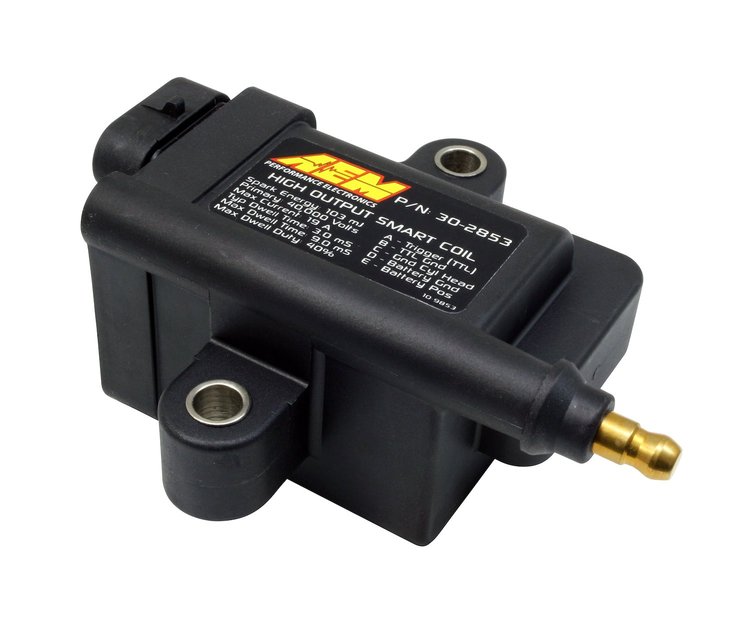

AEM High-Output Inductive Ignition Coils
$9295
4 left in stock
Ships Today
Lowest Price Guarantee
H.O. "Smart" Ignition Coil
- LS1 Style High Output Inductive "Smart" Ignition Coil
- "Smart" Inductive Coils are designed for use on applications that do not have an external igniter.
- CDI-like spark energy without the need for a CDI
WHAT IT DOES:
AEM's High-Output "Smart" Inductive Coils each deliver up to 118mJ of spark energy and a minimum of 41,000 Volts-as much as most CDI systems, without the need for a CDI module! They also provide very long spark duration at full energy, unlike CDI systems and multiple spark systems which fire off small spark events prior to and after its CDI burst to mimic longer spark duration. The full energy delivery and long duration of AEM's High-Output Inductive Coils eliminate the need to compromise energy or duration with your ignition system, and will increase performance in high-boost or high compression engines.
WHY YOU WANT ONE:
AEM's High-Output "Smart" Inductive Coils deliver CDI-like spark energy with the long duration of an inductive coil, and easily install in place of your exiting coils without the need to add a CDI. AEM's coils are constructed to operate in harsh environments. They are shock and weatherproof, allowing them to be mounted virtually anywhere. They are affordable-less than the cost of aftermarket LS1 coils-and deliver World Class performance. "These coils are on 2,000-horsepower nitrous motors without a CDI, and they perform flawlessly. We think they are in a class by themselves", stated John Romero, AEM Director of Product Development.
RACER FEATURES: - CDI-like spark energy without the need for a CDI
- Less expensive than aftermarket LS1 coils
- Robust construction allows them to be mounted almost anywhere
- Available for vehicles with external igniters
TUNER FEATURES: - Massive Spark Energy, up to 118 mJ!
- Incredibly long spark duration, up to 3.2mS!
- Up to 41kV Output Voltage, without a CDI!
- Heavy-duty, weatherproof and shockproof design
- Can be installed directly to engine
TECHNICAL SPECIFICATIONS: - Primary Resistance: 0.5 Ω +/- 10%
- Primary Inductance: 4.8 mH +/- 15%
- Secondary Resistance: 8.5 kΩ +/- 20%
- Secondary Inductance: 22.5 H +/- 20%
- Output (50pF load): 41 kV +/- 10%
- Output Energy: 118 mJ +/- 7%
- Peak Secondary Current: 100 mA +/- 7%
- Arc Duration: 3.2 mS +/- 10%
- Turns Ratio 71:1
- Maximum Battery Voltage: 17 Volts
- Base Dwell: 3.0 mS
- Max Continuous Dwell: 9 mS but don't exceed 40% duty cycle
- Max Intermittent Dwell: 80% duty cycle, 5 seconds maximum
- Mating Connector: Packard/Delphi 12162182 "Pull to Seat"
- Mating Contacts: Packard/Delphi 12124075 "Pull to Seat"
- High Tension Wire Terminal: HEI "spark plug top" Style
TECH TIPS - WHICH COIL IS RIGHT FOR ME: - AEM High Output Inductive Coil "Smart" - For applications which have an internal ignitor located in the ECU
- AEM High Output IGBT Coil with Built in Ignitor "Smart Coil" (AEM P/N 30-2853) - For applications without an external ignitor. Can also be used to completely replace factory coils and an external ignitor.
- AEM Pencil Coils (AEM P/N 30-2850 & 30-2851)- Replace factory coils in applications which have an external ignitor or CDI ignition system. Can also be used in conjunction with an AEM Engine Position Module, 4-Channel Ignitor, AEM Twin Fire Ignition System, and Standalone Engine Management System to replace a distributed setup.
PINOUT: - A: Battery Positive (Relay or switched ignition or high voltage input for CDI)
- B: Coil Trigger (Charging when low)
- C: Ground to Cylinder Head
Part TypeIgnition Coil
BrandAEM
Package Height2.4
Package Width4.3
Package Length4.8
Weight1.09 PG
Part CategoryPerformance Parts
Coil Wire AttachmentMale/HEI
Coil StyleCoil pack
WarningCalifornia Proposition 65
Ignition Wire Terminal TypeHEI Style Tower
QuantitySold individually
Ballast Resistor IncludedNo
Emission Code5
Maximum Voltage40,000 V
WarrantyManufacturer's 1 Year Warranty
Part TypeIgnition Coil
Turns Ratio71:01:00
CategoryIgnition
Peak Current102 mA
Coil ShapeRound
Product TypeDistrutorless Ignition - DIS - smart coil
Mounting Bracket IncludedNo
Sub CategoryIgnition Coil
Coil ColorBlack
Part FitmentSemi Universal
Coil Wire IncludedNo
Vendor Part Number30-2853
Package Qty1
Package TypeEA
