Vehicle Info NeededAEM ELECTRONICSPART NUMBER: 017-30-2130-75

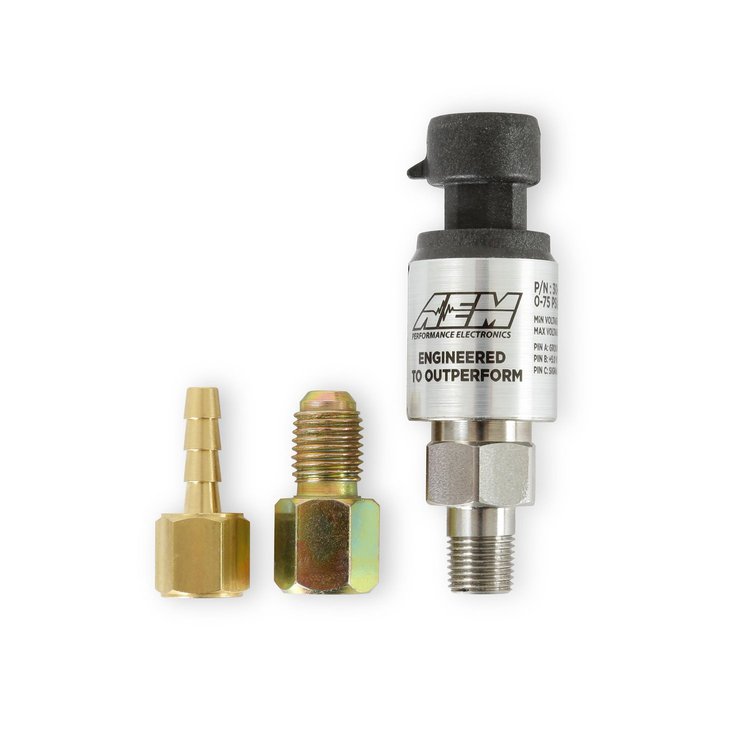

5 Bar/75 PSIa Map Sensor Kit 1/8" NPT male thread
$18495
2 left in stock
Ships Today
Lowest Price GuaranteeMAP Sensor Kits
- 5 Bar/75 PSIa Map Sensor Kit
- 1/8" NPT male thread
- Stainless Steel Sensor Body
- Connector
- Pins
- 1/8" NPT to -4 Adapter
- 1/8" NPT to 3/16" Barb Adapter
Sensor Performance Specifications: - Accuracy: +/- 0.5% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
- Operating Temp: -40C to 105C / -40F to 221F
- Burst Pressure: 750PSI
- Response Time: < 1mS
- Wetted Materials: 304L & 316L Stainless Steel
- Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes
- Weight: <85g
- Supply Current: <6mA at 5 Vdc
- Output: .5 to 4.5Vdc Linear
- Transfer Function: PSI = (18.75*(Voltage))-24.075
- Elec. Termination: Integral weatherproof connector, includes mating connector & pins(Supply Voltage 5Vdc +/- .5, Ground, Output)
Part TypeManifold Absolute Pressure (MAP) Sensor
BrandAEM ELECTRONICS
Package Height2.3
Package Width3.4
Package Length3.9
Weight0.2 PG
Part CategoryPerformance Parts
Wiring Harness IncludedNo
Map Sensor Range (Psi)58
Map Sensor Range (Bar)5 bar
QuantitySold individually
Part FitmentSemi Universal
Map Sensor StyleBosch
Vendor Part Number30-2130-75
Package Qty1
Package TypeEA
