Vehicle Info NeededAEM ELECTRONICSPART NUMBER: 017-30-2130-15
1 Bar/15 PSIa Map Sensor Kit 1/8" NPT male thread
$17795
More than 10 available
Ships Today
Lowest Price GuaranteeMAP Sensor Kits
- 1 Bar/15 PSIa Map Sensor Kit
- 1/8" NPT male thread
- Stainless Steel Sensor Body
- Connector
- Pins
- 1/8" NPT to -4 Adapter
- 1/8" NPT to 3/16" Barb Adapter
Sensor Performance Specifications: - Accuracy: +/- 1% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
- Operating Temp: -40C to 105C / -40F to 221F
- Burst Pressure: 150PSI
- Response Time: < 1mS
- Wetted Materials: 304L & 316L Stainless Steel
- Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes
- Weight: <85g
- Supply Current: <6mA at 5 Vdc
- Output: .5 to 4.5Vdc Linear

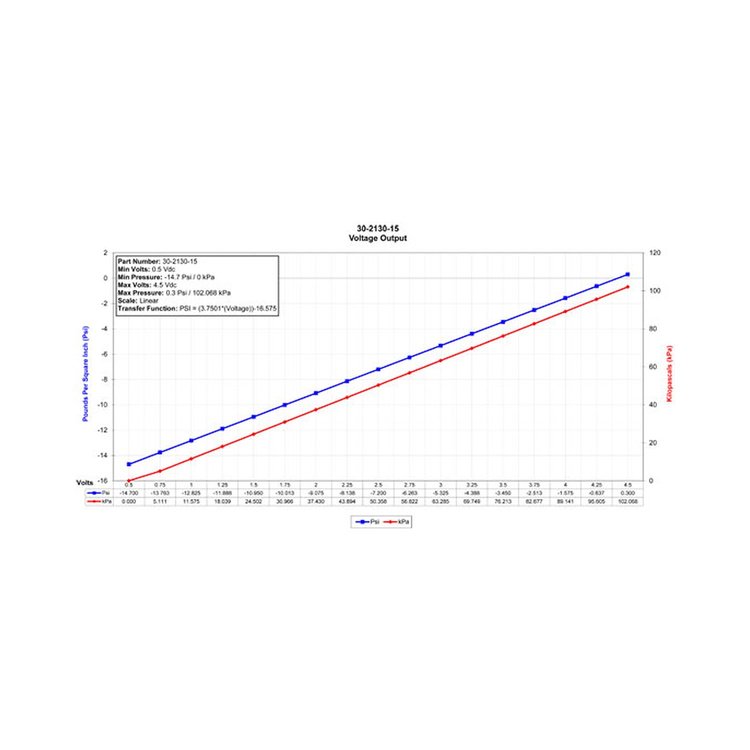

- Transfer Function: PSI = (3.7501*(Voltage))-16.575
- Elec. Termination: Integral weatherproof connector, includes mating connector & Pins(Supply Voltage 5Vdc +/- .5, Ground, Output)
Everything You Need To Complete Your Engine Management System
AEM Performance Electronics offers several sensors, plug and pin connector kits and accessories for vehicles that require additional outputs and/or upgraded hardware over existing equipment. Available sensors include boost/backpressure sensors, exhaust gas temperature (EGT) sensors, UEGO replacement sensors, inlet air temp sensors (IAT), K-Type sensors and more. All sensors come with a mating connector and pins for ease of installation.
Part TypeManifold Absolute Pressure (MAP) Sensor
Product LineAEM Sensors, Connectors And Accessories
BrandAEM ELECTRONICS
Package Height2.3
Package Width3.4
Package Length3.9
Weight0.3 PG
Part CategoryPerformance Parts
Wiring Harness IncludedYes
Map Sensor Range (Psi)0
Map Sensor Range (Bar)1 bar
QuantitySold as a kit
Part FitmentSemi Universal
Map Sensor StyleBosch
Vendor Part Number30-2130-15
Package Qty1
Package TypeEA
