Advance Adapters 50-9550 Features:

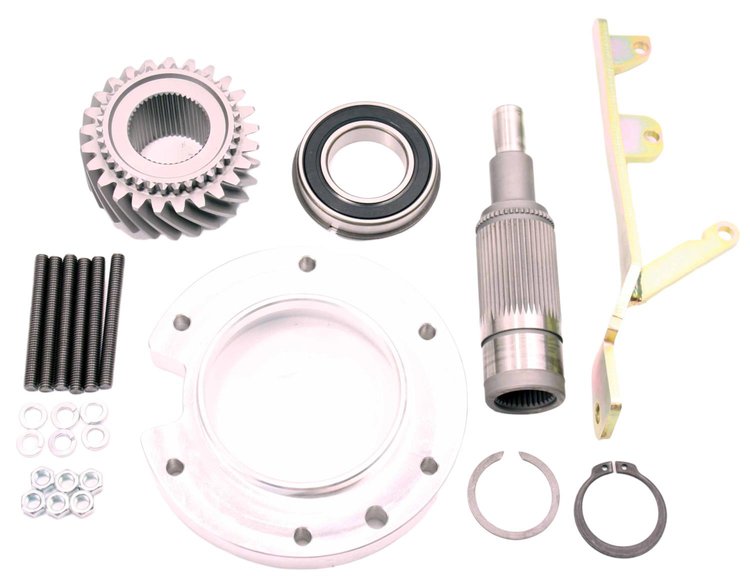

• This adapter assembly will adapt a 4wd Dodge NV4500, 29 spline to a Ford NP205 transfer case. The adapter assembly includes a new female 29 spline NP205 input shaft, gear, adapter ring, NP205 transfer case shifter support bracket and fastening hardware.
• Transfer Case
• This adapter assembly fits the Ford NP205 part time transfer case. The Ford version is a part time, cast iron and offers a 31 spline female input gear, circular six front bolt pattern and a driver’s side front out put shaft.
• Transmission
• The adapter kit is designed for exclusive use with a Dodge 4WD NV4500Transmission with a 29 spline output shaft.
• SNAP-RING EXT INPUT GEAR NP / 340407
• ADAPTER RING NP205 FORD CIRCULAR 1 / 51-9550
• GEAR- NP205 INPUT 46T / 52-9600
• SHAFT- NP205 INPUT 29T / 52-9601
• BRACKET- NV4500 TO FORD NP205 SHIFTER / 715528
• BEARING 6210-T/C INPUT GEAR BEARING / 716315
• SNAP RING-EXTERNAL 1 15/16 / 716467
• NUT 3/8 -16 PLATED GRD 5 / 723701
• LOCK WASHER 3/8 ZINC / 723704
• STUD BOLT 3/8 -16 X 3-1/2 GRD B7 / 723712
