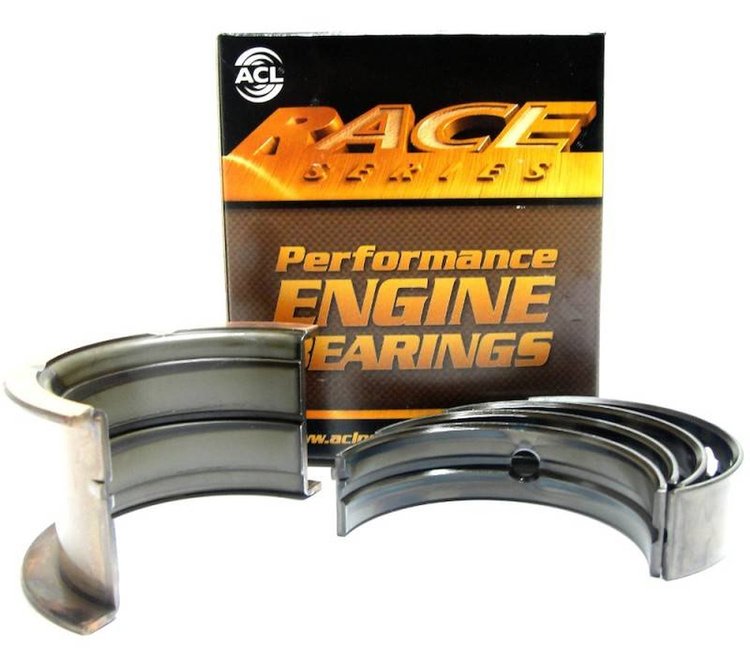

5M1959HX-STD Race Main Bearing Set, Extra .025 mm Oil Clearance, Honda B16A1 1595cc Inline4 DOHC 4v VTEC

Name: 5M1959HX-STD Race Main Bearing Set, Extra .025 mm Oil Clearance, Honda B16A1 1595cc Inline4 DOHC 4v VTEC
Brand: ACL BEARINGS
SKU: 654-5M1959HX-STD
Price: 64.99 USD
Availability: InStock

^$64⁹⁹

3 left in stock

Ships Today

Lowest Price Guarantee

Honda

Race Main Bearing Set

Extra .025 mm Oil Clearance

Honda B16A1 1595cc Inline4 DOHC 4v VTEC

Set of 5

ACL Bearings 5M1959HX-STD Features:

Trusted by champions worldwide, ACL RACE Series Bearings are the choice for record-setting engines from sport compact to small block race machines. Engineered w/a unique blend of design, metallurgy, and precision manufacturing, these Bearings deliver unmatched durability and performance under extreme conditions.

Width: 0.787 in.
Outside Diameter: 2.3236 in.
Outside Diameter: 2.3228 in.
Shaft Diameter: 2.1654 in.
Shaft Diameter: 2.1646 in.
Grade Type: Performance
Maximum Wall Thickness: 0.0783 in.

Unleash Unmatched RPM Performance with ACL Race-Series Main Bearings

ACL Race-Series Main Bearings bring race-tested durability, precision engineering, and state-of-the-art metallurgy into your high-performance build. Their trimetal design features a high-strength overlay plate with reduced thickness for improved fatigue resistance, backed by hardened steel for enhanced support and retention under extreme conditions. These bearings deliver when the going gets tough—on the street, the strip, or the racetrack. Available for various domestic and international applications.

ACL also offers versions with extra oil clearance (HX) or coated (HC).

Part TypeMain Bearing

Product LineACL Bearing Race-Series Main Bearings

BrandACL BEARINGS

Package Height1.05

Package Width0.787 in.

Package Length6.4

Weight0.61 PG

Part CategoryPerformance Parts

Maximum Wall Thickness0.0783 in.

Shaft Diameter2.1646 in.

Part FitmentDirect Fit
